High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing

Brand Name : HOOHA

Model Number : HH-D-350-9/11/13

Certification : CE,ISO,SGS

Place of Origin : CHINA

MOQ : 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000 Sets/year

Delivery Time : 60 working days

Packaging Details : 1. film packing 2. wooden package 3.enclosed wooden package

Model NO. : HH-D-350-9/11/13

Bearing : Japan-NSK

Electric Element : Siemens and Omron

Control Box : International Standard

Block Dia. : 500mm

Wire Size : 8mm Rod

Max Dies No. : 13

Drawing Motor : AC 200-220 Kw

Weight : 15000 Kg

Dimensions : 15*5*3 M

Contact Now

Specification
item
value
Place of Origin
Guangdong China
Brand Name
HOOHA
Usage
Drawing
Model NO.
HH-D-350-9/11/13
Bearing
Japan-NSK
Electric Element
Siemens and Omron
Max. Number of Block
21
Control Box
International Standard
Wire Size
8mm Rod
Max Dies No.
13
Origin
Dongguan
Wire Finished Diameter
1.2-3.5
Power Supply
380V/50/60Hz
Product Description

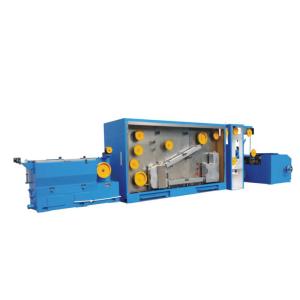

High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
Copper Wire Intermediate Drawing Machine with Annealer
The production line is highly integrated by uncoiling, leveling, forming, cutting off, punching, receiving and related process.The whole production line is controlled by PCL program.Operators can select a preset program to run the whole line automatically by using touch screen.The methods of operation include automatic control, manual control, separate operation and emergency stop.
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
Machine type
280/13DH
300/9DH
250/13DH
250/17DH
260/17D-C
260/17D
Max.inlet Dia.(mm)
3.5
outlet Dia.(mm)
0.65-2.8
1.2-2.8
0.65-1.6
0.4-1.6
0.4-1.5
0.4-1.2
Max.Die No
13
9
13
17
17
17
Max.line speed(m/min)
2000
1200
1800
1800
1500
1200
body structure
Ironed cast
slip ratio of m/c(%)
20
18
20
20
18
18
fix speed capstan Dia.(mm)
280
300
250
250
260
260
transmission type
By high precision grinding gear
By chain
main motor power
55(45)
37
take-up motor(kw)
11(15)
11
lubrication type
Full immersion
Spray type
take-up bobbin size(mm)
500/630(bore is 127mm)or changed by requirement
Optional equipment
1.continuous annealing device
2.coiler
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
After service
1).Delivery dates: 25-30 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4).Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5).After service phone number online
Company Profile
00:00
02:00
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
The Technical Team
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
Certificates and Exhibitions
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
Customer Cases
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
Customers from Egypt come to visit our factory.
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
Customer from Dubai was testing equipment.
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
We contracted the Algerian government-level cable project in 2018.
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
Dinner with customers in the U.S.
Packing & Delivery
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
High Quality Electric Cable and wire Drawing Machine in Cable Making Machine Manufacturing
1. film packing 2. wooden package 3.enclosed wooden package
