Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Product Categories
Dongguan HOOHA Electrical Machinery Company Limited
Contact Now

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Brand Name : HOOHA

Model Number : HH-6+1-630

Certification : CE SGS Sira

Place of Origin : Guangdong,China

MOQ : 1

Price : 210,000 USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10sets/per month

Delivery Time : 60

Packaging Details : PE PLASTIC

brand : HOOHA

usage : stranding

certification : CE,ISO

stranding distance : 30mm-500mm

main body speed : max 400RPM

color : sky blue (national standard 5015)

stranding speed : max 80m/min

equipment direction : left release and right collection

the maximum total load : 1000kg

shaft diameter : PD400-630mm

Contact Now

Product Description

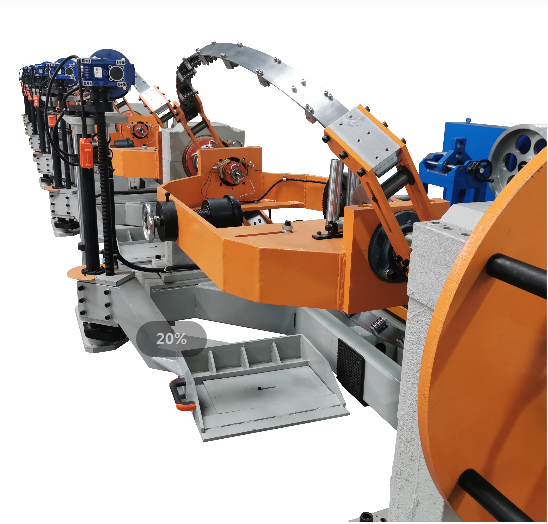

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Application

Suitable for twisted wire, power line, control line, special line wire core and copper wire stranding.

Features

1.Adopt 100% back-twist mode and suitable for stranding 2-6 cores ABC overhead cable, control cable or power cable;
Pitch automatic adjusted;
3.The whole machine adopts HMI+PLC control;

4.Equipped with manual adjustment tape tension system regulation and electromagnetic tensioner, automatically control

and ensure the tension always constant from full to empty bobbin.
5.Optional: max 24 filling devices.

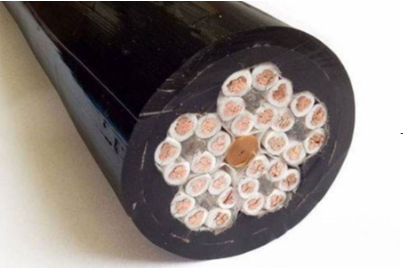

Sample Picture

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Specification

Stranding distance 30mm-500mm
Main body speed Max 400RPM.
Stranding speed Max 80m/min
Equipment direction left release and right collection
Equipment colo sky blue (national standard 5015)
bobbin type single head shaftless top cone type.
spool rotation mod Japan NSK bearing rotation
maximum total load 1000KG
Shaft diameter PD400-630mm.
Host motor 22kw

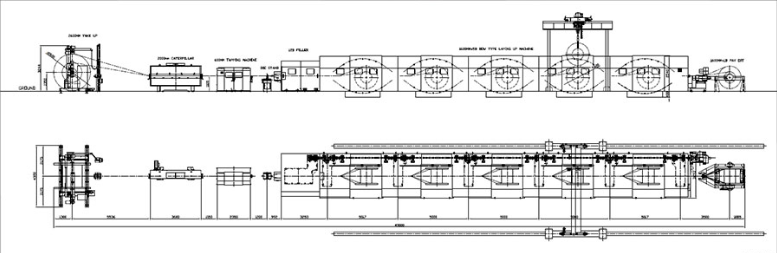

Layout of Equipment

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Factory Picture

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Company profile

Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.

Our vision: To make wire & cable manufacturing and using more humanized.

Our target: More professional customer service, struggle for employees' dreams.

We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions.

Technical Team
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded
Name
Education
Position
Mainly responsible for project
Specializing in project
Working history ( year )
Zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15
Xiaohua Hu
college
Vis general engineer
The total project design and planning
net cable,data cable machine
10
Changhong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25
Xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15
Lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16
Zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15
Jinxin Liu
college
Marketing engineer
After service
electrical engineer
7
Xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10
Changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10
Haipin Li
University
Engineering director
Marketing and sales
project consulting
8
Sen Yang
University
Engineering translator
Marketing and sales
project consulting
5
Customer Cases
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Customer in India

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Customer in South Korea

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Customer in America

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Customer in Algeria

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Customer in Egypt

Exhibitions and Certificates
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Exhibitions in Thailand,2019

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Exhibitions in India,2018

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded
Exhibitions in Shanghai,2014
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded
Packing and Delivery
Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Packing with PE Plastic

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Packing with Carton

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Wooden Package

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Shipping

Sky Blue Bow Type 630mm Type Equipment Stranding Machine with Siemens Smart PLC Management for wires stranded

Arriving

FAQ

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),
Mid East(17.00%),
Southeast Asia(16.00%),
Eastern Asia(13.00%),
South Asia(10.00%),
South America(8.00%),
Eastern Europe(4.00%),
North America(3.00%),
Northern Europe(3.00%),
Southern Europe(3.00%),
Oceania(2.00%),
Western Europe(2.00%),
Central America(2.00%),
There are 5-10 professional workers in HOOHA.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After
service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

6: Do you have a video to show the machine running ?
A. Yes , we have,our youtube channel :https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
