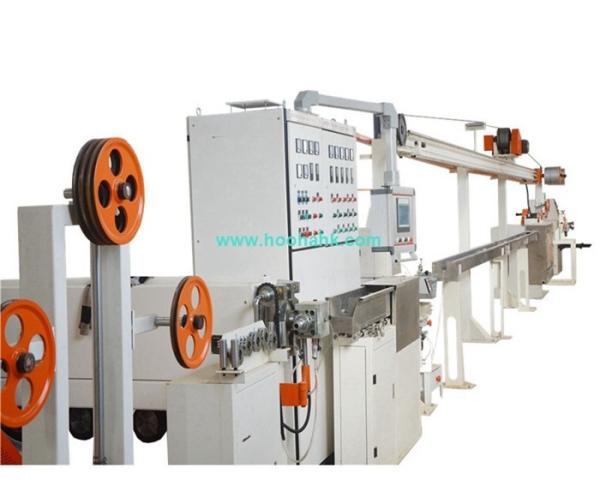

80mm Wire and Cable Extruder Machine Used for PE PVC Insulation Section Area 1.5-10 mm2
1. Application
This extrusion line is widely used for PE or PVC insulation layer or jacket on house wire, lan cable and building cable etc with section area 1.5-10 square mm.
2. Advantages
♦Highly automatic, manpower saving
♦Easy to operate and maintain, start-up friendly
♦Converter applied for adjusting speed, power saving
♦Customization available to meet various customer requirments
Famous Brands Parts:
Motor: Dongguan Motor, Teco, ABB, Siemens
Inverter: Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC
Auxiliary Relay: Japan Omron
Ammeter and Voltmeter: Taiwan Risesun
Indicator, Switch and Button: Taiwan TEND
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK
Bearing: NSK, SKF

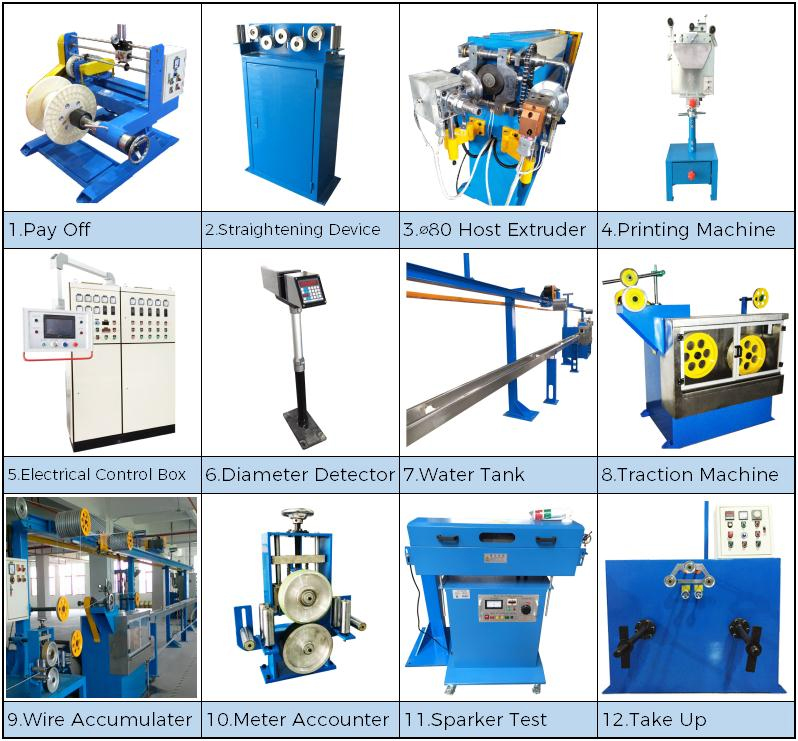

3. Components
4. Parameters
| Inlet Wire Diameter | 1.6 - 4 mm (1.5-10 mm2) | | Finished Wire Diameter | 3 - 6 mm | | Insulation Material | PVC, PE | | Screw Diameter | 80 mm | | Length/Diameter Ratio | 25:1 | | Extrusion Capacity | 200 kg/h | | Extrusion Speed | Max 300 m/min | | Temperature Sections | 7 | | Power Supply | 85 kw | | Air Supply | 2500 L | | Workes Need | 3 workers | | |
5. Technical support
Our engineer team has rich experience working overseas for customer on-site service. This ensure us able to provide our customers widely range of support, such as overseas on-site installation, talent training, long-term technology updating services, etc.

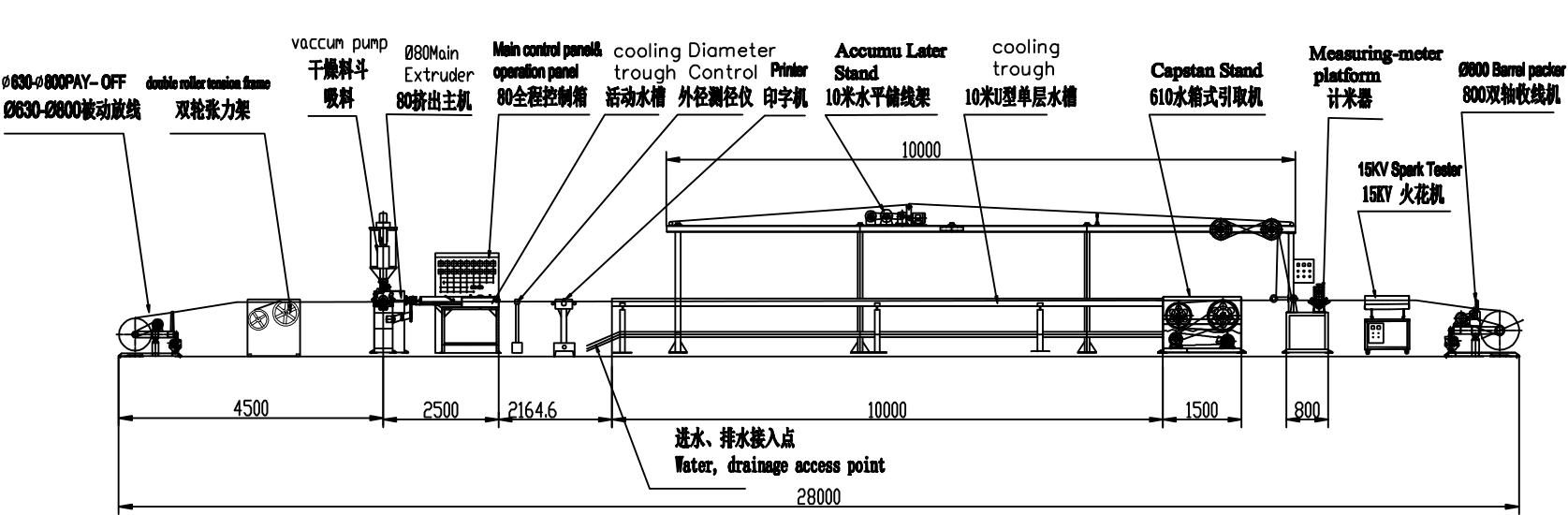

6. Drawings
Q1:What is your main brands for the electrical and mechanical parts?
A:Oversea famous brand such as German siemens motor, Japanese nsk bearing and yaskawa inverter etc.
Q2:What is your difference with other suppliers?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control, talent training, assist machine and raw material offering .
Q3:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery, can be negotiable also.
Q4:How long the guarantee ?
A: One year and charge for repair in the whole life.
Q5: Do you have a video to show the machine running ?
A. Yes , we have,our youtube channel : tiezhong chi.
